Exterior Wall Cladding Panels are advanced architectural materials designed to protect building exteriors while enhancing aesthetic appeal and structural performance. These panels serve as a durable outer skin for buildings, shielding them from harsh environmental conditions such as UV exposure, rain, humidity, and temperature fluctuations. At the same time, they provide a modern, elegant appearance that adds value and character to any architectural design. Exterior cladding panels are commonly used in residential buildings, commercial complexes, educational institutions, and public infrastructure projects, offering both beauty and long-term functionality.

Compact Laminate

Compact Laminate is a thickened double-faced decorative plate with fire resistance, which is made of special resin and a variety of special papers through high temperature high pressure. Due to its dense density and a variety of changes in color texture and surface treatment, it is suitable for load-bearing countertops, and is also widely used for walls, bathroom partitions, dressing room partitions, space area segmentation, storage cabinets and various countertops, etc.

Ingenuity material

1.Basic composition

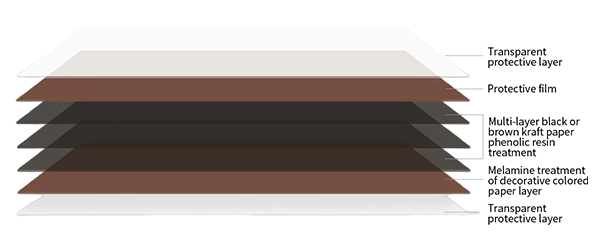

Compact Laminate is made by impregnating decorative color paper with melamine resin and the bottom layer of multi-layer cowhide paper with phenolic resin, and then pressing it at high temperature and pressure of 150℃. Its density is far beyond that of ordinary boards, with a cross section of black and texture, and has an integrated colored resin surface.

2.Aesthetic expression: co-evolution of function and design

The high temperature and high pressure process allows the resin to fully penetrate the fibers, forming an irreversible chemical cross-linked structure, which gives the board high and deformation resistance properties. Compared with the second-generation compact laminate (wood fiber+glue pressing), the first-generation compact laminate has higher density, no formaldehyde release, smooth cross section and stronger weather resistance.

Product Details

Exterior Wall Cladding Panels are typically made from high-quality materials such as High Pressure Laminate (HPL), aluminum composite, fiber cement, or phenolic resin composites. The manufacturing process involves compressing multiple layers of resin-impregnated kraft paper or mineral fibers under high temperature and pressure to form a dense, strong, and non-porous surface. The outer layer is treated with UV-resistant and weatherproof coatings to ensure excellent performance in outdoor environments.

These panels are available in a variety of thicknesses, ranging from 6mm to 12mm, depending on the application and structural needs. They can be produced in standard or customized sizes to suit different façade systems. Surface finishes include matte, glossy, textured, metallic, woodgrain, and stone effects, all of which maintain their color and finish over time. The panels can be installed using visible or concealed fixing systems, ensuring both aesthetic and structural flexibility.

Product Features

Outstanding Weather Resistance: Designed to withstand rain, sunlight, heat, and frost without fading, warping, or cracking.

High Strength and Durability: The dense composite structure provides superior resistance to impact, bending, and mechanical stress.

Moisture and Corrosion Resistance: Non-porous and rust-proof, ideal for coastal or humid climates.

Fire and UV Protection: Meets international fire safety standards and maintains color stability under UV exposure.

Low Maintenance: Resistant to stains, dust, and pollutants; requires minimal cleaning and upkeep.

Lightweight and Easy Installation: Lightweight composition reduces structural load and allows fast, flexible installation on various subframe systems.

Wide Range of Designs: Available in numerous colors, textures, and patterns to complement both modern and traditional architecture.

Environmentally Sustainable: Manufactured using eco-friendly processes and recyclable materials, supporting green building initiatives.

Product Advantages

Exterior Wall Cladding Panels provide significant advantages compared to traditional exterior finishes such as plaster, stone, or paint. They offer long-term durability and color retention without the need for frequent repainting or maintenance. Their superior weather resistance ensures that buildings retain their aesthetic quality and structural integrity for years, even under extreme environmental conditions.

The panels also contribute to improved thermal and acoustic insulation, enhancing indoor comfort and energy efficiency. Their modular installation system reduces construction time and costs, while their lightweight nature minimizes the overall load on building structures. Furthermore, the availability of various finishes—ranging from natural wood to sleek metallic or stone effects—allows architects to express creativity and design freedom in exterior applications.

Application fields

Public space

Bathroom partition: 12-18mm thickness is widely used in shopping malls, schools, hospitals and other public places, moisture-proof, to clean and strong privacy, The hospital/school is cleaned 50 times a day and still no penetration.

Traffic hub: areas with high frequency of use such as airport counters and high-speed rail seats, Shanghai Hongqiao Airport 8mm countertops  impact resistance up to 50J, 5 years of use; scratch depth < 0.1 mm (tested by SGS).

2.Business and office

Worktop furniture: 8-16mm board for laboratory worktop, library counter, luxury display stand, etc.

16mm laboratory countertops resistant to acetone wipe tests 2000 times, both aesthetically pleasing and durable.

Facade decoration: thickness above 12mm can be used for outdoor billboards and building curtain walls, resistant to ultraviolet rays and acid rain.

3.Furniture and customization

Kitchen and bathroom: 16-18mm thick boards can be made into cabinets, bathroom cabinets, waterproof and mildew-proof, suitable for environment.

Interior decoration: 3-6mm thin plates are used for hanging walls and facing, which can be matched with different surface treatments (such as plain, wood grain, metal surface, cloth texture, marble pattern), and are compatible with modern, industrial and other styles.

4.Other industry

Medical and laboratory: Resistant to 98% sulfuric acid corrosion (EN 438), surgical table top sterilization withstands 200 cycles.
