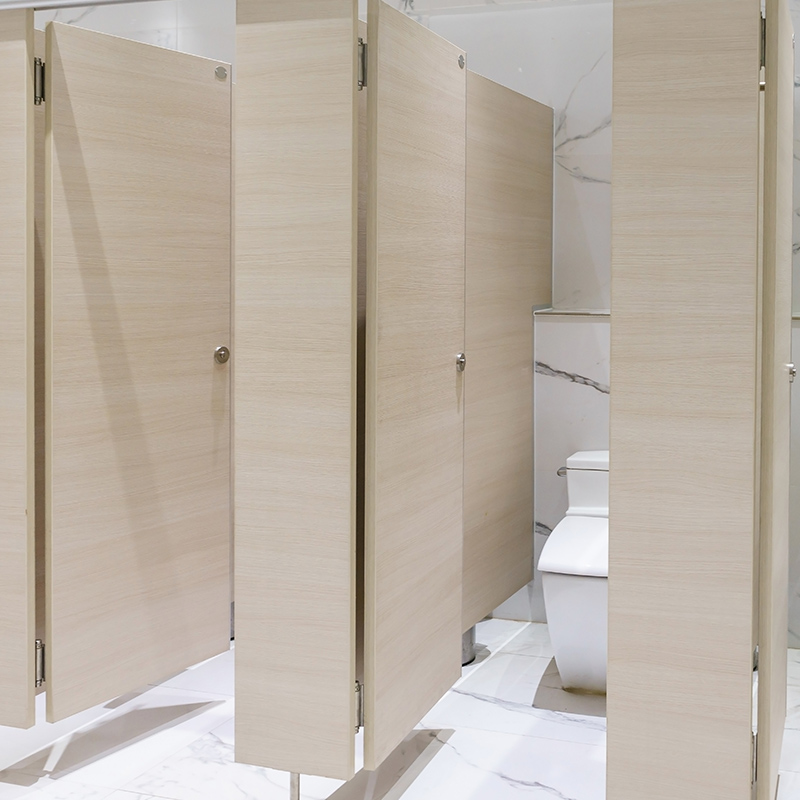

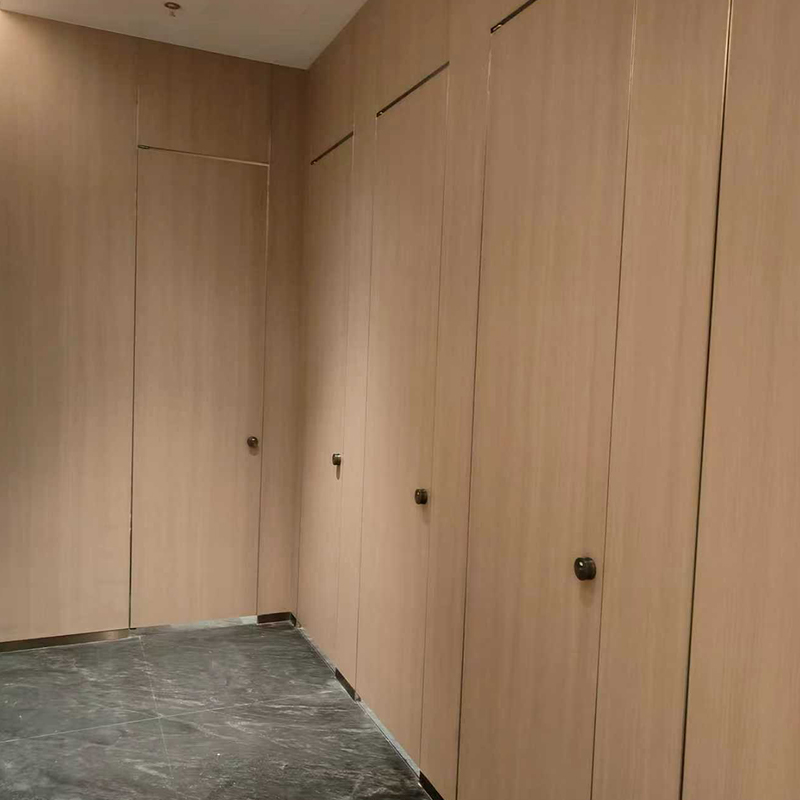

The Compact Laminate Toilet Partition is a modern, durable, and hygienic solution designed for public restrooms and commercial washrooms that require both functionality and aesthetic appeal. Made from high-pressure compact laminate panels, this partition system offers exceptional strength, moisture resistance, and ease of maintenance. It is widely used in offices, schools, hospitals, shopping malls, airports, and other high-traffic environments where durability and cleanliness are essential.

Compact Laminate

Compact Laminate is a thickened double-faced decorative plate with fire resistance, which is made of special resin and a variety of special papers through high temperature high pressure. Due to its dense density and a variety of changes in color texture and surface treatment, it is suitable for load-bearing countertops, and is also widely used for walls, bathroom partitions, dressing room partitions, space area segmentation, storage cabinets and various countertops, etc.

Ingenuity material

1.Basic composition

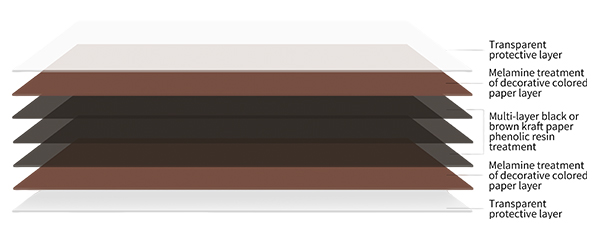

Compact Laminate is made by impregnating decorative color paper with melamine resin and the bottom layer of multi-layer cowhide paper with phenolic resin, and then pressing it at high temperature and pressure of 150℃. Its density is far beyond that of ordinary boards, with a cross section of black and texture, and has an integrated colored resin surface.

2.Aesthetic expression: co-evolution of function and design

The high temperature and high pressure process allows the resin to fully penetrate the fibers, forming an irreversible chemical cross-linked structure, which gives the board high and deformation resistance properties. Compared with the second-generation compact laminate (wood fiber+glue pressing), the first-generation compact laminate has higher density, no formaldehyde release, smooth cross section and stronger weather resistance.

Interpret the quality from four dimensions

1.Physical performance

Impact resistance and wear resistance: The high-density structure allows it to withstand daily impacts. The check-in island at Shanghai Hongqiao Airport uses a 8mm compact laminate countertop, serving tens of thousands of people daily, with no significant wear in 5 years.

weather resistance: Waterproof and moisture-proof: extremely low water absorption rate, can be directly used in damp environments (such as bathrooms, outdoors), no deformation or mild after long-term immersion.

Fire prevention safety: Fireproof flame retardant: fire resistance grade B1 (non-combustible material), does not melt or drip in the presence of an open, in accordance with EU fire standards.

2.Chemical performance

Chemical resistance: can resist strong acids and alkalis (such as commonly used reagents in the laboratory), suitable for special environments such as chemical industry medical treatment.

Antibacterial and easy to clean: the surface is smooth and dense, and has passed the TESTING CANASL5413 and ISO antibacterial, the antibacterial rate can reach 99.8% for Escherichia coli, Staphylococcus aureus, etc., and can be directly with organic solvents.

3.For humid environment

Waterproof and moisture-proof: Compact Laminate is made of special resin and high-performance paper through high temperature and high pressure molding, with dense structure, extremely low water absorption rate. It does not expand, deform, or crack even if it is in a high humidity environment for a long time.

Antibacterial and anti-mold, guarding health and hygiene

In the humid and hot bathroom environment, mold and bacteria are prone to breeding. Giovanni panels have been certified by SGS authority antibacterial test which can effectively inhibit the breeding of a variety of harmful bacteria within 24 hours, effectively reducing odors, and providing a cleaner and more reassuring user experience for public or spaces.

4.Green performance

Low formaldehyde emission: using non-formaldehyde resin, in compliance with EU E0 grade, and certified by FSC forest product chain of custody, GRCC and other international certifications.

Sustainability: Some brands use FSC certified timber, scarps can be recycled, low energy consumption in the production process, in line with the trend green building materials.

Product Details

The partition is constructed from compact laminate panels, which consist of multiple layers of kraft paper impregnated with phenolic resin and a decorative melamine surface layer. These layers are bonded together under high temperature and pressure, forming a dense, solid, and non-porous material. Standard panel thicknesses range from 12mm to 18mm, depending on design and application.

The Compact Laminate Toilet Partition is available in a wide variety of colors, woodgrain patterns, and textures, offering flexibility to match different architectural styles. Panels are precision-cut and finished with smooth, rounded edges for safety and elegance. The hardware, including hinges, locks, and brackets, is made from stainless steel or aluminum, ensuring corrosion resistance and long-lasting performance even in humid environments.

Product Features

Waterproof and Moisture Resistant: The non-porous compact laminate structure prevents swelling, delamination, and mold growth, making it ideal for wet areas.

Durable and Impact Resistant: Engineered to withstand heavy use and physical impact without bending or cracking.

Hygienic and Easy to Clean: The smooth surface resists dirt, bacteria, and stains, ensuring a clean and sanitary restroom environment.

Fire and Heat Resistant: Certified for fire safety and able to maintain integrity under high temperature conditions.

Aesthetic Versatility: Available in a wide range of colors and finishes to complement different design styles.

Rust-Proof Hardware: Equipped with high-quality stainless steel fittings for enhanced longevity and stability.

Privacy and Comfort: Designed with precise panel alignment and secure locks to ensure user comfort and discretion.

Product Advantages

The Compact Laminate Toilet Partition combines strength, beauty, and practicality in one complete system. Unlike conventional wood or PVC partitions, it is completely waterproof and resistant to humidity, making it ideal for washrooms with constant exposure to moisture. Its robust construction guarantees long-term use without deformation or surface damage, significantly reducing maintenance and replacement costs.

The partition’s modern design and variety of finish options allow architects and designers to create aesthetically pleasing and functional restroom spaces. Its hygienic, non-porous surface supports strict sanitation standards, while its rust-proof hardware ensures stability and reliability in all conditions.

Application fields

Public space

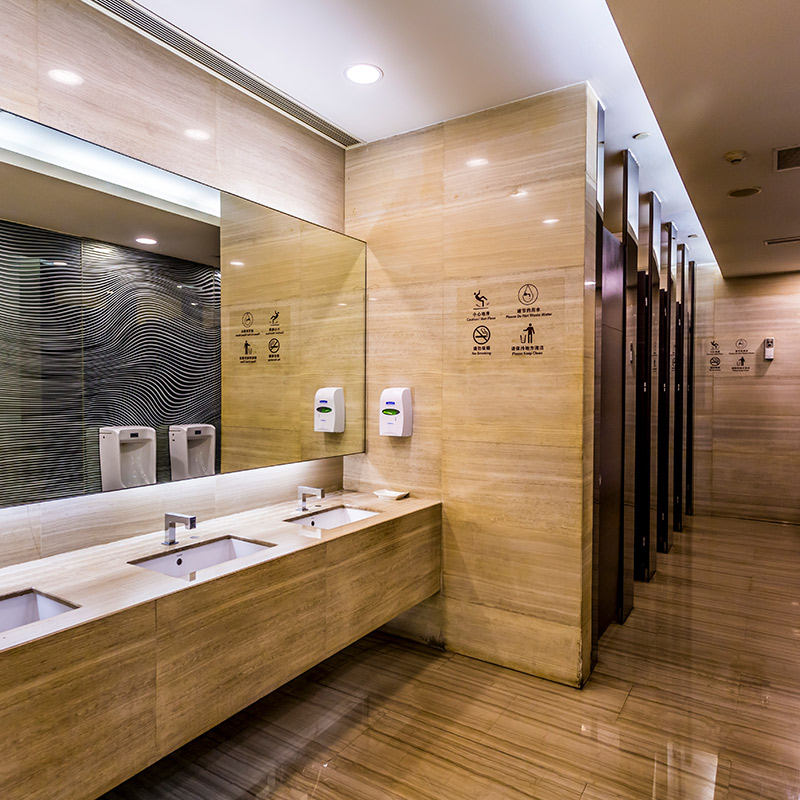

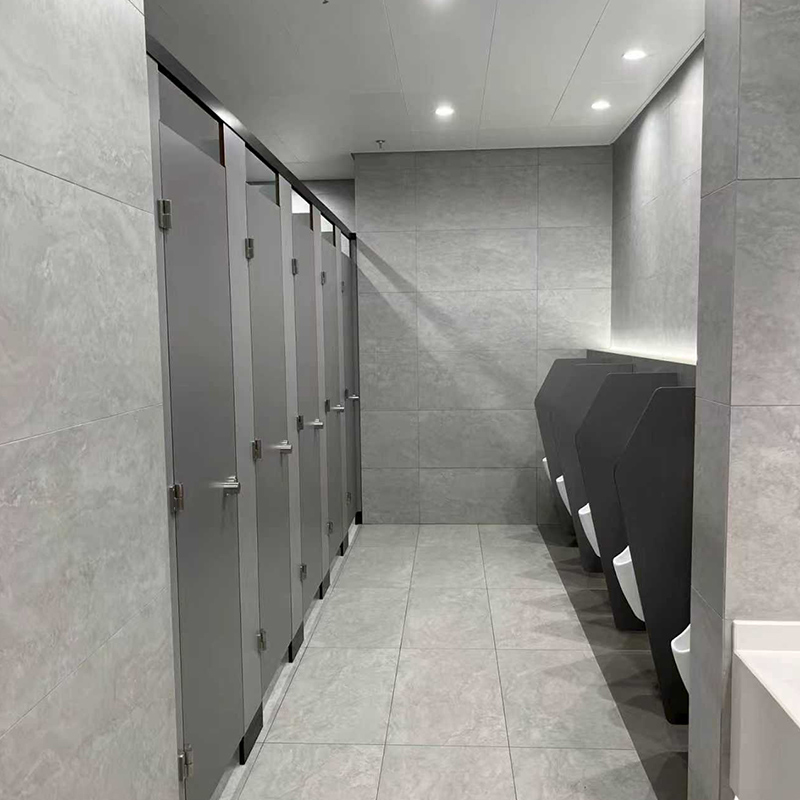

Bathroom partition: 12-18mm thickness is widely used in shopping malls, schools, hospitals and other public places, moisture-proof, to clean and strong privacy, The hospital/school is cleaned 50 times a day and still no penetration.

Traffic hub: areas with high frequency of use such as airport counters and high-speed rail seats, Shanghai Hongqiao Airport 8mm countertops  impact resistance up to 50J, 5 years of use; scratch depth < 0.1 mm (tested by SGS).

2.Business and office

Worktop furniture: 8-16mm board for laboratory worktop, library counter, luxury display stand, etc.

16mm laboratory countertops resistant to acetone wipe tests 2000 times, both aesthetically pleasing and durable.

Facade decoration: thickness above 12mm can be used for outdoor billboards and building curtain walls, resistant to ultraviolet rays and acid rain.

3.Furniture and customization

Kitchen and bathroom: 16-18mm thick boards can be made into cabinets, bathroom cabinets, waterproof and mildew-proof, suitable for environment.

Interior decoration: 3-6mm thin plates are used for hanging walls and facing, which can be matched with different surface treatments (such as plain, wood grain, metal surface, cloth texture, marble pattern), and are compatible with modern, industrial and other styles.

4.Other industry

Medical and laboratory: Resistant to 98% sulfuric acid corrosion (EN 438), surgical table top sterilization withstands 200 cycles.
